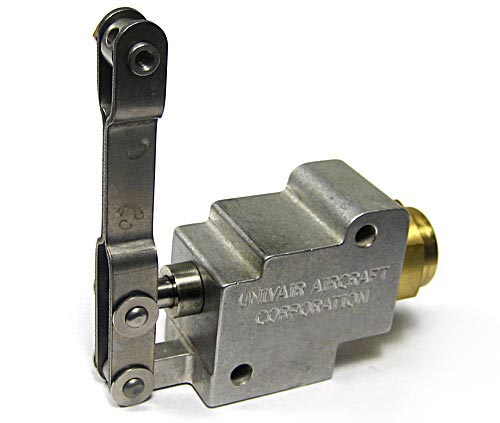

SCOTT TYPE PARK BRAKE VALVE 4500-A1

$510.00/Each
Part# 06-00393
MFR Model# U4500A-1
DescriptionModel No.Port A / Port BPart No.
SCOTT TYPE PRK BRK VLV U4500-A11/8 ANPT06-00393

Overview

A fine quality valve for applications in parking brake systems, helicopter rotor braking systems, pneumatic pressure controls and other hydraulic uses. Molded rubber valve seat designed for use with MIL-H-5606BB petroleum base hydraulic fluid.


California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

    U4500S-A1 Eligibility:
  • Raytheon 90, 100, 200, 2000. Supercedes 4500SA1
    U4500-A1 Eligibility:
  • Piper PA-18, PA-18S, PA-18A, PA-18AS, PA-19, L-18C, PA-19S, L-21A, L-21B, PA-20, PA-22, PA-22S. Stinson 108 Series. Supercedes part numbers 4200-A1, 4500-A1, 492-023

Reviews

As always. Aircraft Spruce to the rescue! The valve was exactly correct, and works perfectly. Best of all it was delivered early. Keep up the good work!

Jeffrey H
November 9, 2020

This unit does not hold pressure. No I have to drain out 5606 and remove part to exchange for another. Hopefully that one will hold pressure.

Andy R
March 26, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which port goes to the hydraulic reservoir and which port goes to the brake, or does it matter?

Port A, horizontal port is the supply, and port B, vertical port is the out flow.
