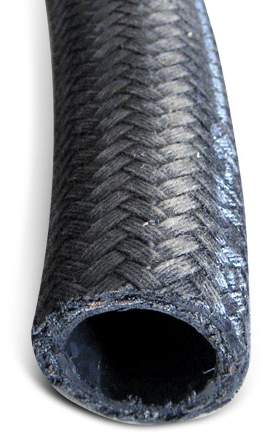

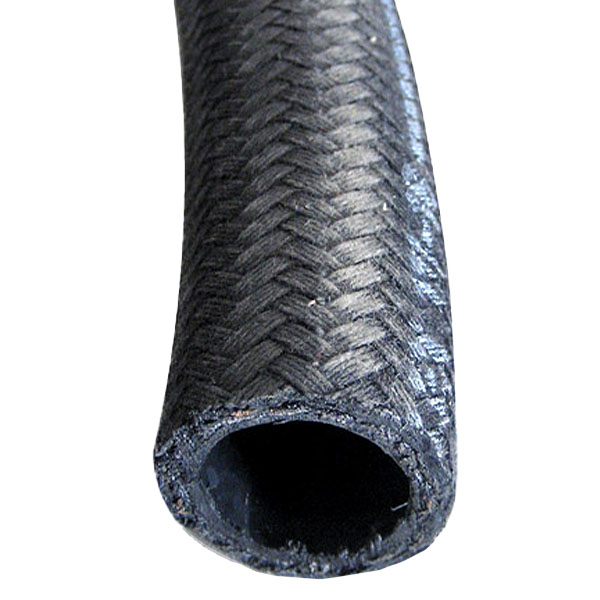

Stratoflex 111-5 Hose

$15.55/Foot
Part# 111-5
MFR Model# 111-5
PNTube ODHose ODHose IDMax PSIWgt / In
111-5.312.58.2503000.0130

Overview

Sold by the foot.

SPECIFICATIONS:
  • Hose meets or exceeds the requirements of MIL-H-8794. Fittings meet the requirements of MIL-A-5070. Hose assemblies meet or exceed requirements of MIL-H-8795. See information bulletin IB-1030 for TSO approvals.
CONSTRUCTION:
  • Tube - Seamless synthetic rubber adhesive.
  • Reinforcement - One fiber braid and one high tensile steel wire braid.
  • Cover - Fiber braid impregnated with oil and mildew resistant rubber adhesive.
IDENTIFICATION:
  • Stratoflex name and part number; specification number, size number, quarter and year of manufacture; and federal identification number (CAGE).
APPLICATION:
  • Aircraft hydraulic, pneumatic, coolant, fuel and oil systems. See MS33620 and MIL-H-8795.
TEMPERATURE RANGE:
  • Size -3 thru -12: -65 to +250 F (-54 to +121 C); Size -16 thru -48: -40 to +250 F (-40 to +121 C)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Adf M Verified Purchase

Stratoflex 111-5 Hose

October 5, 2024

Exactly what I need.

Richard M Verified Purchase

Stratoflex 111-5 Hose

May 25, 2023

Great product, like the yellow label for an easy read.

Richard O
April 11, 2021

Very good, durable product just right for any flex tubing job. I used it to replace my old brake lines on my warbird. VERY much worth it.

Joe S
August 31, 2020

I needed to replace the reinforced oil return line on my BMW G650X motorcycle. While regular 1/4 I.D. fuel line from the auto parts store will work, this line has a higher temperature rating and gives me a little extra piece of mind. It cost more than a standard rubber hose, but is much less than the OEM replacement part. Aircraft Spruce had this hose in stock and shipped it out quickly for a reasonable price. Thank you!

Courtney P
August 18, 2020

Real fast delivery, perfect !!

Theo H
June 5, 2020

This was the perfect hose for my project. Worked great! Great customer service and delivery time. Thanks.

Daniel H
April 5, 2020

111-6 oil line was a perfect fit as expected.

T140v
October 14, 2019

Just what I ordered

Larry N
October 4, 2019

good

Roger K
July 24, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the shelf life of Stratoflex 111 hose?

32 quarters (8 years from DOM).

Q: Does this Stratoflex 111 hose work with AN fittings? Specifically - does the 111-6 work with the -6AN fittings?

No. Stratoflex 111 hose require Stratoflex 300 straight, 646/640 45 degree, or 649/643 90 degree fittings. (See Accessories tab).

Q: Is this Stratoflex 111 hose priced and sold by the foot or by the inch?

This hose is priced and sold by the foot.

Q: Is the Stratoflex 111 comparable to Aeroquip 303?

Yes, Aeroquip 303 is the equivalent of Stratoflex 111 hose.

Q: Is a special tool required connect the fittings to the hose?

A mandrel is commonly used to help install the fittings on this hose. You can find them on our web site listed as "HOSE AND FITTING ASSEMBLY MANDRELS".

Q: Can a 111 hose be used for an airconditioning hose?

We have no data to support the use of Stratoflex 111 hose in an air conditioning system.

Q: Could Stratoflex 111 be used with AVGAS and MOGAS?

Stratoflex 111 is not approved for use with automotive(mogas) fuel.

Q: Can 111 house be used with aeroquip fittings?

No. They will fit and work with the hose but the hose would not be legal.

Q: What is the shelf life of a 111 hose?

These have a 10 year shelf life.

Q: Is the Stratoflex 111 comparable to Aeroquip 350?

It is comparable to aeroquip 303 hose.
