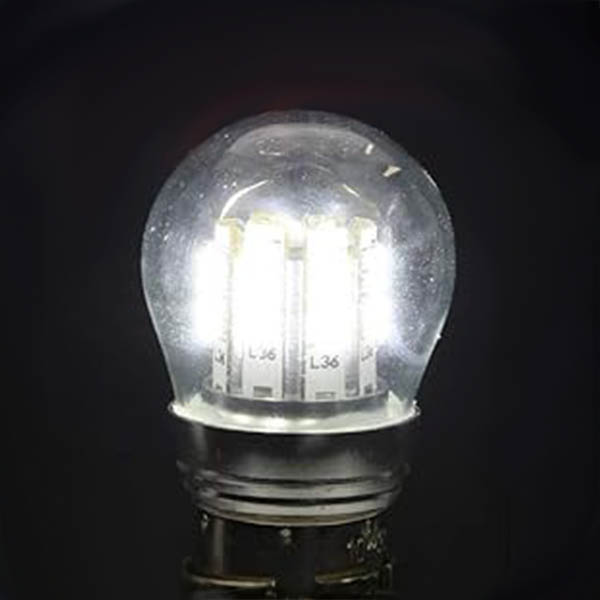

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

$33.95/Each
Part# 13-22036
MFR Model# RA-7512-LED-RF-CW-10-40V

Overview

An affordable, long life, super-bright LED replacement for high-current demand incandescent bulbs for Whelen/Grimes Rotating Beacons and position lights.

This glass dome LED is an exact replacement for BAY15s-base incandescent bulbs. Super bright 3W design. Mirror-gloss reflector concentrates and directs lighting.

Very low power consumption. Cool white LEDs are super-bright (300 lumens). Mirror-reflector mimics OE bulb function and ensures a bright rotating-light effect. Exact fit replacement in most older rotating beacons

Note: Not suitable for flash-tube type strobes.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Super bright cool white output
  • Replaces common Grimes / Whelen incandescent reflector bulbs (12V or 24V)
  • Sealed glass dome for superior dust/moisture resistance
  • Super bright 3W design brighter than incandescent it replaces
  • Low current consumption about 12% of an similar incandescent
  • Exact fit replacement for common Grimes / Whelen bulbs used in rotating beacons and position lights
  • Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA)

Specifications

  • BAY15s base (single contact, dual off-set retainers)
  • Exact replacement for Grimes/Whelen/GE incandescent reflector bulb
  • Rated at 50,000 hours
  • 300 lumens
  • Power consumption is less than 220mA at 13.8VDC
  • Mirror-gloss reflector

Benefits

  • Super bright 3W design
  • Low power consumption (less than 220mA)
  • 10-36VDC (works on both 12V and 24V electrical systems)
  • Cool White LEDs and mirror-gloss reflector produces a very bright lighting effect
  • Long life LEDs rated at 50,000 hours

In The Box

  • 1- BAY15s bulb,
  • 1- Reflector-series, cool white LED
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I am very happy with the two LED bulbs I put in my rotating beacon, much brighter on less power draw

Paul B Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

July 23, 2023

It seems to work very well. Direct replacement and less power draw.

Daniel B Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

June 5, 2023

Excellent drop-in replacement. Bright light and low power draw.

High S Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

September 21, 2022

Good value Great replacement LED bulb

John H Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

March 4, 2022

Nice, simple upgrade to LED.

Paul P Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

February 24, 2022

Fit Grimes position lights perfectly. Much brighter for less amperage.

Bobby P Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

December 3, 2021

Wow! Perfect for Grimes Beacon. Great clear light and the beacon spins like new.

Bobby P Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

November 24, 2021

I am trying to keep my Bonanza as original as possible and still use the “coffee grinder” Grimes beacon. These bulbs fit and operate perfectly and use a fraction of the power the original bulbs used.

Stephen A Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

October 12, 2021

I got the red, green and the model #1156 for the tail light to replace the incandescent bulbs…superb! Almost blindingly bright. I used the existing red and green colored lenses.

Michael H
September 5, 2021

Made the installation easy. Worked as per spec.

Rick G Verified Purchase

REFLECTOR SERIES LED REPLACEMENT BULBS COOL WHITE

August 25, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will Part# 13-22036 replace GE1939X 28V?

It will not, the posts on 13-22036 are offset and they are level on GE1939X.

Q: Does it flash on and off on its own, or does it need to be wired through a flasher?

No. This bulb does not have an internal flasher.

Q: Will this 13-22036 replace GE BULB GE-1940?

Yes this will replace a GE-1940.

Q: Is the mirro-gloss reflector material inside the glass bulb or coated on the outside? Can the reflector material be easily removed from the bulb without damaging the bulb glass to make it 360 deg illumination?

This is coated on the outside and it could probably be removed. Removal would be at your own risk and could damage the bulb.

Q: Is this a replacement for NLI-7512-12?

Yes this is the led replacement for a 7512 style bulb.

Q: What is the overall height of this bulb?

1.75 overall.
