PSA Enterprises Model 918 LED Tail Light Tl918

Select Model:
12v24v
Quantity
Add to Wishlist

Overview

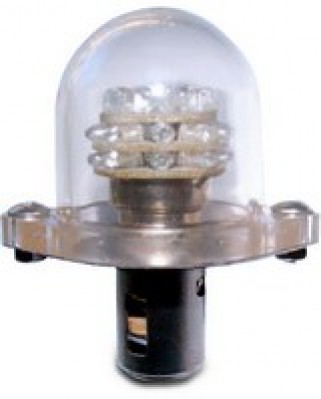

LED based Tail Light that weighs only 1.5oz. High Impact Polycarbonate Optical Lens. Up-to (50,000 hrs.) life. Draws .13 amps @12vdc. It measures approximately 1.6" high and 1.4" diameter.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • High Impact Polycarbonate Optical Lens.
  • Up-to (50,000 hrs.) life.

Specifications

  • Weighs only 1.5oz.
  • Draws .13 amps @12vdc.
  • Measures approximately 1.6" high and 1.4" diameter.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How does this unit connect electrically to the aircraft? I dont see any wires in the picture.

The TL918 unit comes with 2 - 6" wires (1 red and 1 black) to connect electrically to the aircraft.

Q: Is there a 24 volt option or will it run on 24v as is?

Yes, it is available in 24v. Our part number is 12-12039. Please use the drop down list above to select 12v or 24v.

Q: Can I get the paperwork included for this model 918 LED tail light TL918 to install on a certified aircraft?

This tail light is not PMA'd so no paperwork is available for installation on certified aircraft.

Q: Does this unit require any additional power supplies, or does it connect directly to the battery voltage. Can it be mounted vertically or horizontally?

Per the supplier: The LED TL918 TAIL LIGHT does not require any additional power supplies. Also, it can be mounted vertically or horizontally.

Q: I have a 63' Piper Cherokee 180...will this fit as a drop in replacement for the standard dim bulb that I currently have, once it's all wired up?

No. The PSA tail light is not FAA approved for use in certified aircraft.

Q: Is the screw pattern of this lamp the same as a Whelen? In other words, is it a standard size?

Yes, this units footprint is standard and should fit a standard taillights footprint.

Q: Are these PSA 918 LEDs white or red?

These are white.

Q: Is this a good replacement for the Grimes A2064 (in an LSA or experimental)?

Yes this should have a similar footprint but you may have do some modification to the wiring.
