Control Mount

4 Reviews 8 Answered Questions
From $14.50 to $21.90
Main Image
Main Image
Description Part Number Price Buy
SLOTTED BRACKET CONTROL MOUNT 10465
10465
$21.90
Quantity
CLAMP STYLE CONTROL MOUNT 10464
10464
$14.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

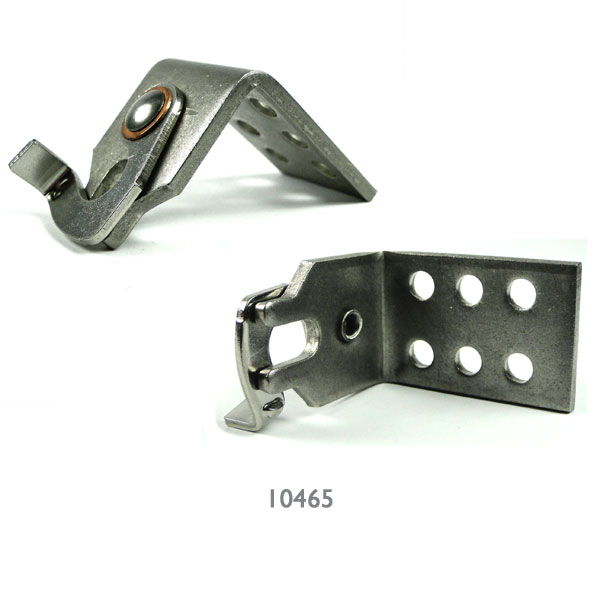

SLOTTED BRACKET CONTROL MOUNT (PN 10465)
Notch of end fitting locks into slot of bracket to secure control. Steel Construction. Includes 1 bracket.

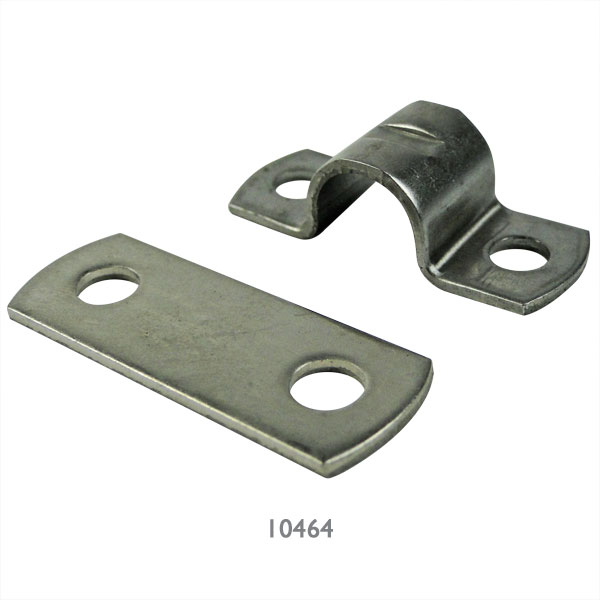

CLAMP STYLE CONTROL MOUNT (PN 10464)
Protruding finger in clamp holds control in position. Two-piece steel clamp and base.


Made in USA

Note: These are made to be used for Aircraft control cables.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Dimensions

Slotted Bracket Control Mount - P/N:10465
  • Length of Hole Side: 1-1/2"
  • Length on Latch Side: 1-1/4"
  • Hole ID- .20"
  • Latch Hole Width: 1/4"
  • Latch Hole Lengthy: .465"
  • Thickness: 1/8"

    • Clamp Style Control Mount - P/N:10464
  • Length: 1-3/8""
  • Width: 1-2"
  • Hole ID- .20"
  • Height of Rounded Area: .34"
  • Width of Rounded Area: .39"
  • Thickness: .060"-.067"

    • Reviews

    Submit a Review

    Nice. Had to adapt them some, but most plans builders like me will have to and it was easy to do.

    C. F Verified Purchase

    SLOTTED BRACKET CONTROL MOUNT 10465
    February 23, 2023

    Louie L Verified Purchase

    SLOTTED BRACKET CONTROL MOUNT 10465
    March 16, 2022

    Louie L Verified Purchase

    SLOTTED BRACKET CONTROL MOUNT 10465
    March 16, 2022

    A heavy enough bracket but I had to replace swivel rivet with a bolt as it was loose and flimsy compared to rest of construction.

    Bruce
    October 17, 2019

    Q&A

    Submit

    Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: Will your mount 10465 work with the A-700 and A-770 control cable?

    The mount will work on the A-770 control, but not the A-700. The mount will work with a 10-32 threaded control, not the solid wire end control.

    Q: Will 10464 work with control cable 05-14200?

    No, these two will not work with each other as the dimensions of P/N# 10464 is .385" ID and .345" Height. The diameter of the cable housing for P/N# 05-06930 is .188" in diameter.

    Q: is there a dimension on the 10464 hole width?

    The ID (width) is .385".

    Q: Will the 10465 work on clamping a A930 push pull cable?

    This will not work as P/N#'s 10464 & 10465 are for the swiveling 10-32 end controls.

    Q: What is the length and width of p/n 10464?

    Approximately 1-1/4" length x 1/2" width.

    Q: What is the fastener hole diameter for PN 10464?

    The fastener hole diameter is .195". This will fit a #10 or 10-32 threaded bolt.

    Q: What is the thickness of the mount and back plate of 10464?

    The flat base is approx. .068", and top mount material is approx. .058".

    Q: What is the hole spacing between the 6 holes on the 10465 bracket?

    |Measured as pictured in the photo, they are .40" center to center when measured left to right and .50 center to center when measured top to bottom.
