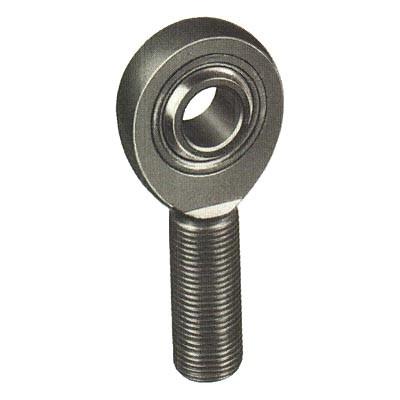

Male Thread MS21151 Bearing

From $67.75 to $107.85
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

PN MS-21151 Price Buy
REP3ML3-1$81.75
Quantity
REP3MR3-2$88.65
Quantity
REP3M6-2N-4$76.75
Quantity
REP4M6
-8$67.75
Quantity
REP4ML6
-9$89.85
Quantity
REP5M6
-10$107.85
Quantity
Subtotal $0.00
Add to Wishlist

Overview

  • Precision series
  • Double row, ball, self-aligning
  • 10° permissible misalignment in either direction
  • These bearings are manufactured with an internal
    play of .0004 in. (.010mm) max.
  • Inner and outer raceway surface finish = 8 micro in. AA max.
  • Equipped with PTFE seals
  • Exposed surfaces except bore, cap, and seals are
    cadmium plated
  • Outer shank – 90,000 psi min. tensile strength
  • Prelubricated (refer to nomenclature page)
Note: Bearings with the letter "P" within the part number are with Plyoseals - Bearings without the letter "P" are with solid metal seals

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications


PN MS-21151 B
Bore
D
Outside
Dia.
W
Width
Inner
Ring
H
Width
Outer
Ring
A
Shoulder
Dia.
F
Bore
Center
to end of
Shank
L
Thread
Length
M
Thread
Size
Load
Rating
(lbs)
Weight
REP3ML3 -1 .1900 .781 .437 .328 .281 1.375 .750 10-32LH 1000 .04
REP3MR3 -2 .1900 .781 .437 .328 .281 1.375 .750 10-32RH 1000 .04
REP3M6A -3 .1900 .969 .500 .407 .304 2.031 1.313 3/8-24 1200 .05
REP3M6-2N -4 .1900 .781 .437 .328 .281 1.375 .750 3/8-24RH 1000 .05
REP4M6 -8 .2500 .938 .593 .438 .345 1.875 1.125 3/8-24RH 1720 .07
REP4ML6 -9 .2500 .938 .593 .438 .345 1.875 1.125 3/8-24LH 1720 .07
REP5M6 -10 .3125 1.25 .870 .656 .506 2.438 1.563 3/8-24 2920 .24
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

More expensive, but worth it for precise control application due to double row ball bearing. Less friction in turning than slide bearings.

Igor Z
January 25, 2018

This item work/performed very well in the area it is used with.

Daniel J
September 8, 2017

Great Services

Daniel J
September 8, 2017
