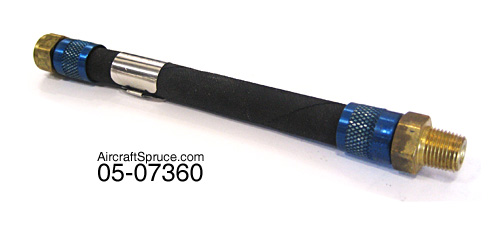

Piper Oil Pressure Hose

$163.75/Each
Quantity
Add to Wishlist
Part# 05-07360
MFR Model# U71061-000

Overview

Flexible oil pressure hose
Applicability: Piper J-3, PA-11, PA-14, PA-16, PA-18, PA-20, PA-22, PA-28
Length: 6-3/4"
FAA/PMA approved
Supercedes part numbers 71061-000, 71061-00

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

This hose did not work for me as a replacment, the female end threads were not cut deep enough into the fitting so it did not tighten up to the original copper flared line on the aircraft. Leaked like crazy and nothing can be done to tighten it. I would not recomend buying this.

Harvs A
July 27, 2020

Replaced due to rubber cracking at the request of AI. Would not tighten on the flare for aluminum tubing. New replacement has not been reattempted. Will wait until next oil change, but old pressure hose reused and works fine

John P
May 22, 2020

It appears to be made with a hose material that is designed for vacuum and air only not oil? Hose material appears to be Aeroquip 306

Skyhaven A
March 16, 2020

Bought this hose in 2015.for my J3.Had to replace it in 2018.the hose was leaking very bad.Full of weather cracks.You would think that it would last at least 10 years at the price that this hose is sold.

Leo B
June 1, 2018

I called the manufacturer (Univair - PMA holder) and they said they DO currently use Aeroquip 306-4 per Piper drawings from the 70s. 306 200psi is clearly stamped on the U71061-000 in my J3. According to Univair, the original PMA drawing (10-14-81) calls for a Stratoflex A3067-1. I called Parker and they said this hose is no longer available.

Rob
November 18, 2021

This part does not use 306-4 tube. Suggest contacting the manufacturer before assuming what materials are used...

Jase
October 20, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does that match 71061-00 part number from Piper Cub J3 oil line?

Yes, we order this hose under supplier's number U71061-000. It is the same hose as 71061-00.

Q: What is the size of the tubing thats used? My fittings are good but the hose itself needs to be replaced.

This assembly uses 306-4 hose, but we do not assemble this unit and can not advise if or how the hose can be replaced.
