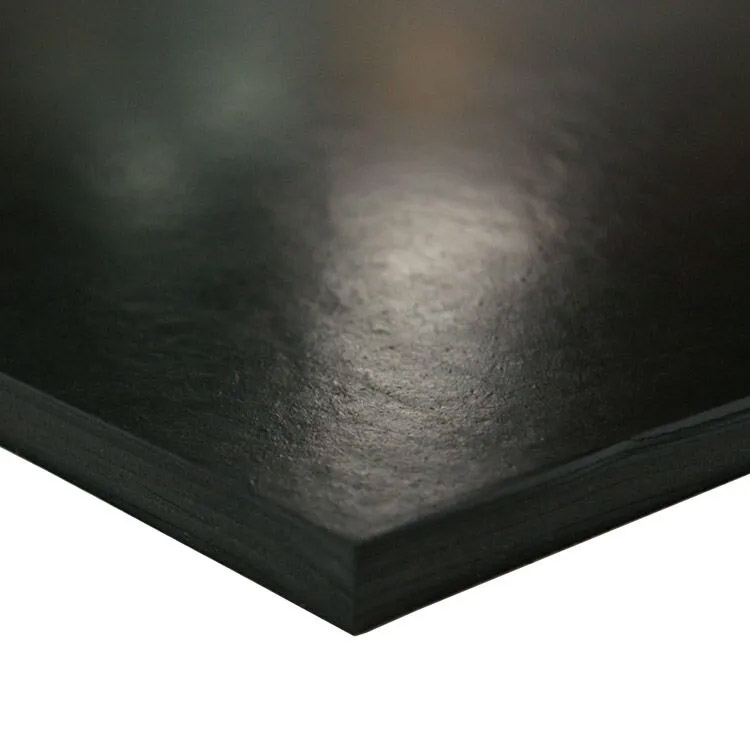

Nitrile Commercial Grade Black Rubber 60A – 1/16 Inch x 36 Inch

$7.99/Foot
Quantity
Add to Wishlist
Part# 05-01001
MFR Model# 02-111-0062

Overview

Nitrile rubber, also known as Buna-N or nitrile butadiene rubber, is an excellent synthetic elastomer for commercial and industrial applications that need seals and gaskets. NBR material features superior levels of resistance to synthetic and natural oils and greases. It also possesses good resistance to abrasion. This oil-resistant rubber is ideal for use in industrial oil and gas production facilities, commercial petroleum processing plants, and various automotive applications.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Able to resist ozone, making it good for outdoor use
  • Our nitrile rubber sheets have a smooth finish
  • Can operate in temperatures between -20° F and 170° F
  • Our NBR material is available in custom gauges of up to 2” thick and 72” long

Specifications

Description: Nitrile (i.e. Buna-N) sheet Rubber designed for pads, seals, and general gasket applications. It is recommended for applications which good oil & grease, as well as moderate ozone resistance is needed. This Nitrile sheet has good resistance to most industrial & commercial oils and grease products.
Compound: 10% Nitrile Base, A Blend of Nitrile (NBR) and SBR
Color: Black
Weight: Approximate weight per square foot: 1/8″ weighs 1-1/4 lbs.
Durometer: 60 Shore A, +/- 5
Temperature Range: -20 F to 212 F
Minimum Tensile: 725 PSI or 5 MPA
Finish: Smooth
Minimum Elongation: 300%
Gauges: 1/32”, 1/16″, 3/32”, 1/8″, 1/4″, 3/8″, 1/2″, 3/4”, 1” (custom gauges up to 2” thick are available upon request)
Widths: 36″ (custom widths up to 78” are available upon request)

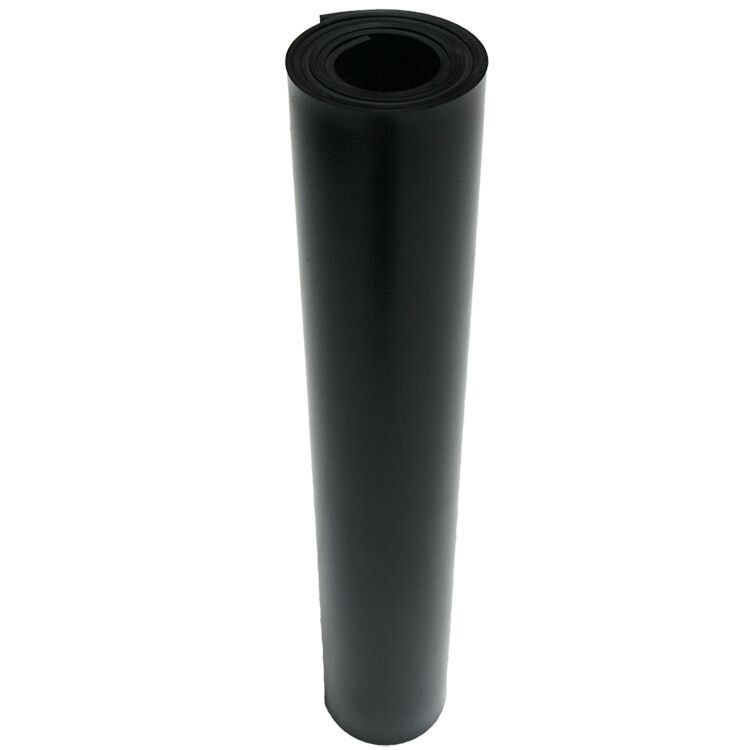

Roll Length: 25’ or 50’ (depending on thickness)
PSA: Pressure sensitive adhesive can be applied to this product upon request.
Chemical Resistance: Good compatibility with Methyl Alcohol, Ammonia, Ammonium Salts, Animal fats, ASTM Oil categories #1, #2, #3, ASTM reference Fuel A, B, Butane, Copper Salts, Detergents, Diesel Oil, Gasoline, Glycerin, Jet Fuels JP-6, Kerosene, Mercury, Natural Gas, Potassium Salts, Propane, Tallow, Zinc Sulfate. For Nitrile’s compatibility with your specific medium please consult a Rubber-Cal representative.
Applications: For use as bumpers, pads, sealing and general gasket applications. This is commercial grade material, not recommended for severe ozone-resistant applications.
Flexibility: This medium durometer (60 Shore A) sheet rubber offers moderate pliability and elasticity.
Custom Cuts In addition to hand fabrication, this product can be fabricated using laser, die, and water-jet cut. Please submit your drawings for a price quote.
Availability: Popular gauges are always in stock.

Benefits

Superior Oil Resistance: Buna-N sheet rubber is very popular for use in applications that see a regular presence of natural and synthetic oils and greases. In fact, nitrile rubber was first developed for this purpose in the years after World War I. Over the years, it has gained a reputation for being the go-to elastomer for any application that involves oils. Whereas other rubber materials can be damaged by oils and greases, nitrile exhibits a durable longevity when put into contact with such substances. As a result, NBR material is perfect for commercial, industrial, and automotive uses.

Flexible Rubber: Our Buna-N sheet has a durometer rating of 55-65. It is a medium grade rating that means the elastomer features more flexibility and elasticity than 70 durometer rubbers. It is not the hardest rubber around, but it does have decent resistance to abrasions. However, its flexibility allows it to be better used as seals, gaskets, and bumpers for a large number of different commercial and industrial applications.

Blended Material: Our nitrile rubber is actually a blend that contains amounts of neoprene and styrene butadiene rubber (SBR) in addition to the nitrile. Thanks to the blended materials in this oil-resistant rubber, it brings a good level of all-round resistance to oils and chemicals, which only enhances the considerable strength of nitrile’s resistance to oil. The SBR rubber brings an added level of abrasion resistance and weathering resistance.
