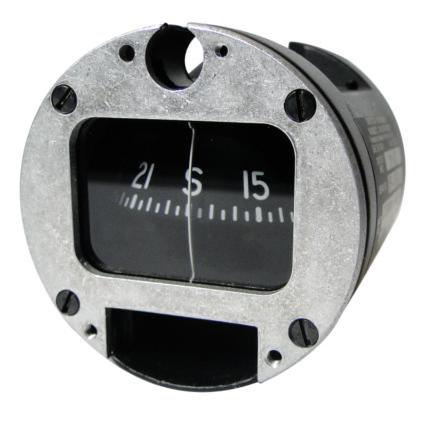

This is inner case compass only. Designed to fit Airpath 2-1/4" as replacement compass only (for models 2400-L4VT, C2400-L4P).
Light & mount (outer casing) sold separately
Northern Hemisphere only.
Old leaking and faded compass cartage slid out of the holder and this new one slid in. Easy and simple. Compass was swung with very minor adjustments. Elegant solution to my problem.
We needed to use the old compass faceplate as the new compass did not work with the existing mount. Also, the original compass had a mounting screw in the bottom and the new compass did not, so we needed to mark, drill and tap out a hole for the bottom mount screw. Other than that is worked fine.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This part number for the C2400 inner case is only designed to be used with C2400 series compasses.
No, per the manufacture a southern hemisphere is not available at this time.
This is just the inner part of the compass and does not include the outer case. The outer case part number is 10-04697. If you need the complete compass the part number is 10-01345.
Per Airpath the fluid is included.
This part # is just the inner case, the compass is not included.
The compass has the mounting hardware for installing in the housing.
The diameter for the compass is 2-1/4 . With the refill cap on top of the compass.
Total depth of the inner case is approx 2-11/16 inches.
It may function, but the outer housing will "seal" the compass. It may function but since it is designed to be used inside the case, we cannot recommend it's use without it.
