ISS Carb Fuel Pressure Sender 16Psi Non TSO

$72.75/Each
Quantity
Add to Wishlist
Part# 10-01083
MFR Model# 411AB

Overview

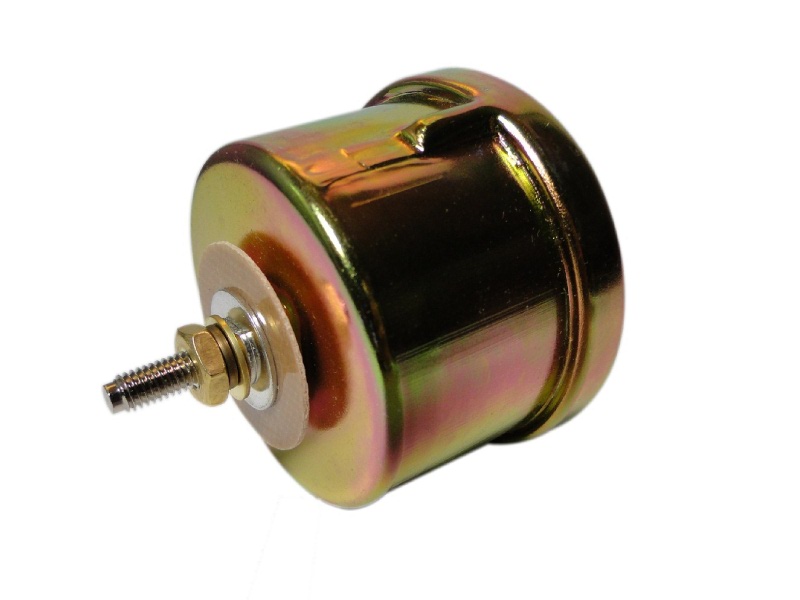

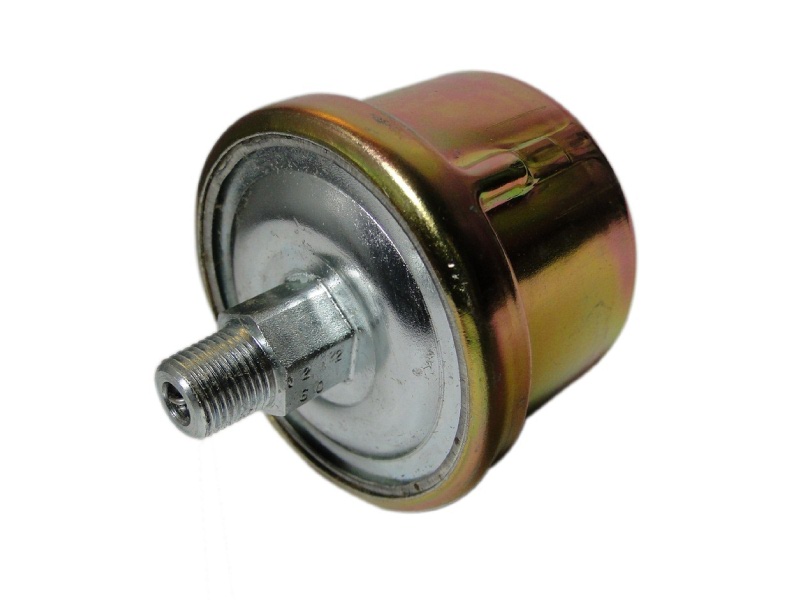

ISS carb fuel pressure sender, 16PSI, Non-TSO.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

Reviews

Uzan E
March 27, 2017

See above

Peter S Verified Purchase

Iss Carburetor Fuel Pressure Sender 16PSI Non-TSO

October 6, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Could you inform me on the thread size of the pressure input stud? Which fitting is required to connect the sender to the fuel system?

The carb fuel pressure sender, part number 10-01083, has a 1/8" stud for the pressure input. The nut to attach the fitting is 10/32".

Q: Does this ISS carb fuel pressure sender ground to the engine block via the threads or does a wire connection need to be soldered to the sender case?

There is no soldering required for this unit.

Q: What’s a the ohms output range?

240ohms at 0 psi, and 33.5 ohms at 16 psi.
