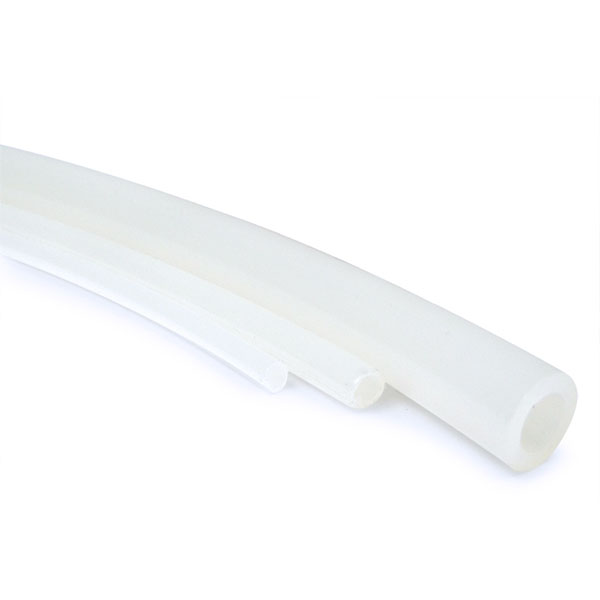

3/16 Nylaflow Tubing Type H

$0.75/Foot
Part# 05-04355
TypeODIDPSIPart Number
High
Bursting
Pressure
3/16.111
(appx.)
250005-04355

Overview

Nylon Polypenco. pressure tubing is a super tough, low friction, high flexibility tubing that can be used for cable protectors or in short pieces, as small bushings and washers.

Suitable for use in oil, air, vacuum, fuel and low pressure hydraulic lines. It resists abrasion and wears better than aluminum or steel tubing. Has an extremely smooth inner surface with a very low coefficient of friction. Used for brake lines, and also as a conduit for the rudder cables in the Rutan VariEze and Long-EZ. Rated 1000 psi. Sold by the foot.

Use Poly-Flo fittings with standard wall tubing. Click here for the Poly-Flo fittings webpage.

Note: Poly Flo fittings cannot be used with High Burst Pressure tubing.
Must use SAE fittings (See Accessories Tab).

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Suggested Temp Range: -65°F to +150°F
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Product worked perfectly (first time, no leaks) on my home built brake line. It’s pretty inexpensive, order extra - Spruce shorted me by a foot, but I had enough to finish the job.

Alan B Verified Purchase

3/16 Nylaflow Tubing Type H

October 14, 2023

Excellent! Did the job I needed it to with no problems.

Ron A Verified Purchase

3/16 Nylaflow Tubing Type H

October 25, 2022

II hope is is a good as I the Nylaflow I removed from my plane after 40+ years of use with no failures.

Jerry M Verified Purchase

3/16 Nylaflow Tubing Type H

June 29, 2021

Always good product, fast shipment.

Richard W
March 3, 2021

Perfect for Tracy O’Brien brake system!

Robert F
July 6, 2020

great stuff

Jerry C
April 16, 2020

Pretty simple stuff....does what it is suppose to.

Ray
November 1, 2019

All good ... quality parts, professional/respectful service and never had a problem.

Paul A
July 21, 2019

Nylaflow, nylaseal, nylon ns, nsr, etc... Did I buy the right one? Hope so. I went overkill with the high pressure stuff so install was a little tough as it is not very flexible. I used in my Rans brake lines. Time will tell!

Robert H
October 19, 2018

Works great for routing rudder cables thru the cockpit.

James L
March 31, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this nylon tubing compatible with 5056 hydraulic fluid used in brake lines?

Yes, this tubing is compatible with 5606 hydraulic fluid.

Q: Is the buy column in feet, inches, yards?

This tubing is priced and sold by the foot.

Q: Is the Nylaflow tubing “FAA approved” for installation on the certified aircrafts as a replacement of the aluminum tubing?

No, the Nylaflow tubing is not approved by the FAA.

Q: Can this tubing be used for airspeed and altimeter in my ultralight?

Yes, as long as you select the correct size you are needing.
