Electric & 12V Gasoline Fuel Pumps

Select Voltage:
12V115V
Quantity
Add to Wishlist

Overview

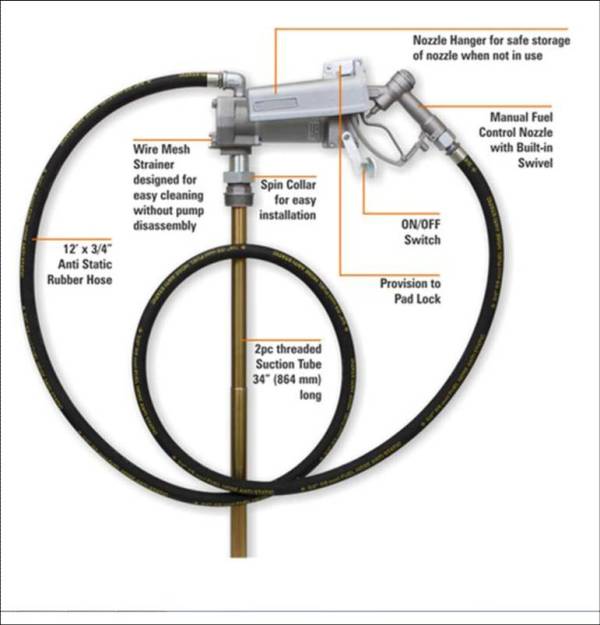

Action 115V (fpm-115)& 12V (FPM-12)Gasoline pumps

Heavy Duty Industrial Grade Fuel pumps designed for every day use in: Agricultural, Construction, Automotive, Industrial, Racing & Boating applications. Rain & Weatherproof for tough outdoor use Lightweight, yet strong non-corroding Aluminum Die-cast construction. With a geared pump design using precision sintered metal gears and sintered geared construction makes this pump more tolerant than plastic gear designs; in addition to offering tremendous suction & minimal noise. This design is such that the motor cannot be switched on without removing the nozzle from the nozzle hanger. The low current draw increases usage life from a single charge of battery on DC pump model UL & cUL listed Motor.

Note: Not rated for aviation fuel.

Specifications

Duty Cycle:
30 Minutes On / 30 Minutes Off
Gallon Per Minute (GPM) 115 GPM

Wetted Components:
Aluminum, Steel, Cast Iron, Nylon, NBR, Zinc, Viton, Polypropylene, PVC

Recommended Use:
Gasoline, Diesel

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I use 5 gallon plastic containers to pump from using the Electric & 12V Gasoline Fuel Pumps PN: 08-07610?

Per the manufacture the tubes that come with the fuel pumps are to long for a 5 gallon container and this would not work.

Q: How applicable is this pump to lift gasoline from containers to a 2.5m high level? It this an externally re-chargeable pump? What is the power source? Can this be applicable to lifting gasoline into a high wing airplane? Is the power motor built in or have to be connected to a battery to siphon fuels?

The pump is rated for a maximum head of 6.7 feet. The pump must be connected to a 12V battery to work. Similar to a car battery or deep cycle battery. The pump has a 12V motor and is not intended to siphon.

Q: How many gallons per minute will the pump flow?

This pump will pump 15GPM.
