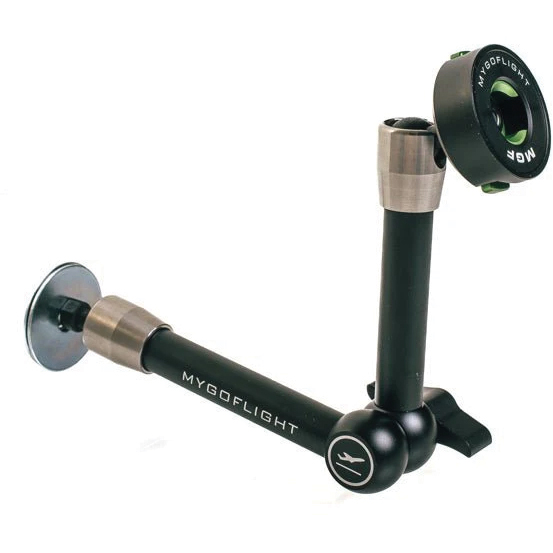

The Sport™ Mount - Flex Stud - an INFINITELY articulating and adjustable arm. There is no other panel mount for an iPad/Tablet that does all that this unit does in a single, light-weight, easy to configure mount.
The iPad Mount - Flex Stud is the perfect mounting solution for pilots that would like to install an iPad directly into their panel, such as in many experimental aircraft. The stud secures easily to any hole in the panel for easy mounting.
NOTE: You must have a Device Holder to use this mount
Sport Mount - Flex Panel can be installed by any pilot onto the panel of their aircraft
Flex Panel can be installed into an existing panel instrument slot without having to cut any holes
Ball and socket ends and a ratcheting center provide infinite adjustment to height and position
Rotate device between landscape and portrait positions in-flight when mounted
Arm Extension: 3.5" to 10.5"
Arm Diameter: 3/4"
Arm Material: Aluminum
Stud Length: 3/4"
Stud Diameter: 1/4"
Washer Diameter: 1 1/2"
Sport Adapter Diameter: 1 1/2"
Sport Adapter Material: Aluminum
Weight: 11 Oz./ 311 grams
Material - Alloy
Secure the stud mount into the panel using the provided stud
Attach the Sport Case or Universal Cradle (Both Sold Separately) to the Sport Adapter
Loosen the control knob, position the iPad/Tablet
Fine tune iPad/Tablet positioning, tighten control knob
The arm is comprised of three independent joints, all adjustable and lockable from a single, centrally located control knob
The control knob joint is adjustable to 360° and the two end joints are mini ball heads that are adjustable to 105°
The control knob allows partial loosening for safe and precise device positioning.
No longer limited to fixed length, limited rotation RAM arms
Takes all of the guess work out of mount size selection and problems of imprecise positioning
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Does this mount allow for side to side rotation on a plan view? Ie the same direction a plane would yaw
Yes, you can rotate the orientation with this mount.
