FLANGING-360 TOOL

$199.00/Each
Quantity
Add to Wishlist
Part# 12-02030
MFR Model# FLANGER-360

Overview

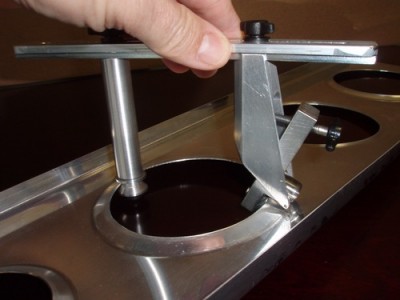

This is a companion tool to the ARC-360 lightning hole cutter. The Flanger-360 will form a 30 degree flange on 2024-T3 aircraft aluminum up to .032" thick and in diameters from 2 to 6 inches. Its polished hardened steel rollers gently and effortlessly form the flange as the operator rotates the tool around the lightning hole.

Unlike other flanging tools that rely on the skill and eye of the operator, the Flanger-360 stays in constant position with the lightning hole via guide rollers as it progressively forms the flange.

Reviews

Just worked through 30 something rib lightening holes. This tool is quicker than making the tooling to press the flanges, and makes a cleaner, more consistent flange than the ones I pressed. It's not cheap, but does a great job. Leave the plastic coating on the backside/bottom of the piece, and then wax the top side (a candle works) to prevent galling of the alclad.

James
September 7, 2014

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the minimum hole diameter that this tool will function properly at?

The minimum hole diameter is 2".

Q: Can the tool flare downward, away from the tool, as well?

It will not, but if you can access the other side of the material you can get the same effect by flaring it from that side.

Q: Would this work on the holes installing gauges in my military truck to give panel little more styling

We do not have any experience in this application. It may work fine but we cannot say for sure.
