Vernier-Assist ™ Throttle Controls For Dual Carb Rotax 912 / 914

Select Length:
48-Inch72-Inch96-Inch144-Inch
Quantity
Add to Wishlist

Overview

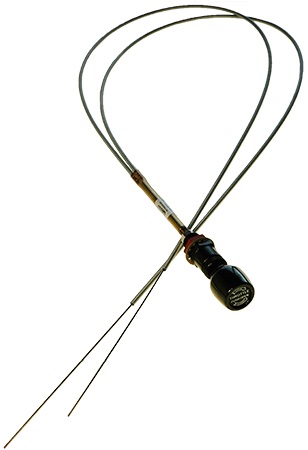

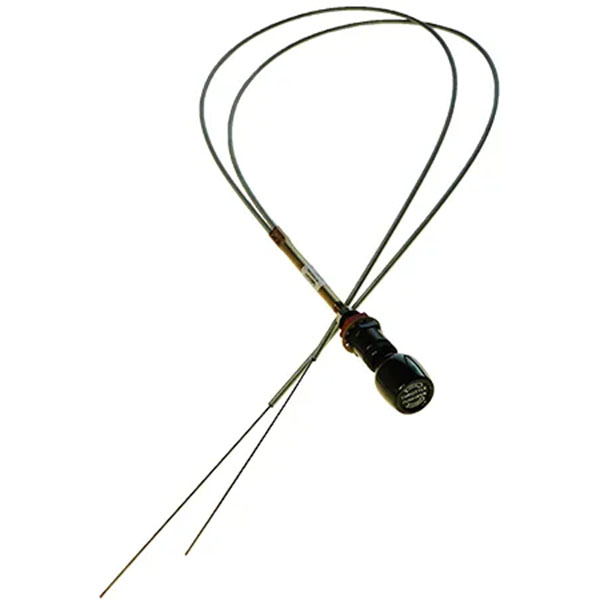

Vernier-Assist™ Throttle Controls for Dual Carburetor 912/914 Series Rotax Engines

Dual Throttle Control with 1/16" dia 1x7 twisted stainless steel wire ends.

Innovative design allows a neat, clean installation without a clunky splitter box

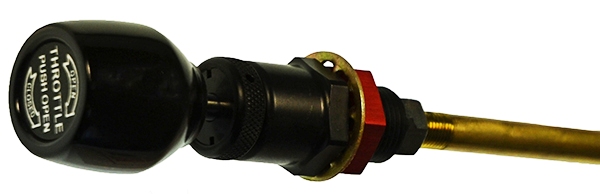

This type of control has all the fine adjustment benefits of an old style push-button release vernier control, with the simplicity, responsiveness and jam-proof safety of a friction lock control.
  • Light weight and compact behind the panel
  • Safer - No vernier threads to jam!
  • US Patent No. 8,485,057

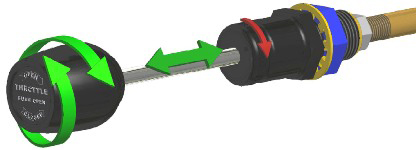

These light weight controls use a patent pending drive mechanism. The roller action vernier provides smooth, jam-proof coarse and fine adjustment without a release button. Coarse adjustments are made by pushing the knob inwards or pulling the knob outwards. Fine adjustments are made by rotating the knob clockwise or counterclockwise.

These controls are not for use on certified aircraft, or for flight controls or flight control trim tabs.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Super-smooth friction lock
  • Quality all metal construction
  • High temperature Teflon™ lined for smooth, consistent control
  • (Cheapy controls with poly liners will not tolerate engine temperatures)
  • Available in 4, 6, 8, 12 foot and custom lengths
  • Measured from panel fitting to end of conduit, wires extend at least 6 inches beyond conduit
  • Easily trimmed to length
  • Includes P/N 6408 hardware kit
  • Versatile threaded conduit terminals for easy adjustment (M6x1-6g x 1 inch thread)
  • Adjustable cable stops to limit travel
  • Two knob styles available: Ball (-B) or standard barrel shape
  • Manufactured to the same quality standards as McFarlane's FAA-PMA parts

Specifications

  • Panel Fitting: 3/4-16 UNF x 0.875 inch thread
  • Slip Fit Conduit Terminals: 2 each with M6x1-6g x 1 inch thread
  • Conduit: 0.188 inch OD Teflon™ lined wound conduit
  • Inner Wire: Heavy duty 0.062 inch diameter, 1x7 stainless steel twisted wire per MIL-DTL-87161
  • Travel (stroke): 3.5 inch maximum
  • Design Work Loads:
  • Push: Not applicable (designed for pull loads only)
  • Pull: 10 lbs maximum
  • Typical Locking Force: 1 to 10 lbs (locking force dependent on friction lock engagement)
  • Operating Temperature: -65 to 450 deg F

Documents

Reviews

Direct F Verified Purchase

MctV0005D048 Control Throttle Vernier Assist

March 21, 2023

Amazing product, I am very happy by the excellent quality of this throttle control. One down side, some control stop have very small hardware, it would be nice to get a couple of those spare screws in the kit.

Zero G Verified Purchase

MctV0005D072 Control Vernier-Assist

January 11, 2023

Quick shipping and works great with my Rotax 912. Makes fine tuning in flight smooth.

Kyle W Verified Purchase

MctV0005D072 Control Vernier-Assist

June 12, 2022

Pure F Verified Purchase

MctV0005D048 Control Throttle Vernier Assist

May 31, 2022

Works great. A must for the rotax engines.

Jbrown
May 28, 2020

The shipping took longer than It should have and it was missing a set screw. It only go to try it once and it seems awesome

Fred
April 30, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this lockable/opening by turning knob or pushing it? Do you have a pdf. file with more information of it like installation manual or operating manual?

Yes, we have added the Instruction Manual to the web page in the Documents tab. Please review them there.

Q: What is length of 48 inch from rear of panel. That is, is it 48" of the Bowden cable or 48" of Bowden plus sheath to rear of panel?

It is 48" from the panel fitting to the end of the conduit. The cables will extend another 6 inches past the conduit.
