UAVIONIX TAILBEACON NAV LIGHT ADS-B OUT FOR CERTIFIED AIRCRAFT

$1999.00/Each
Quantity
Add to Wishlist
Part# 11-17246
MFR Model# TAILBEACON-TSO

Overview

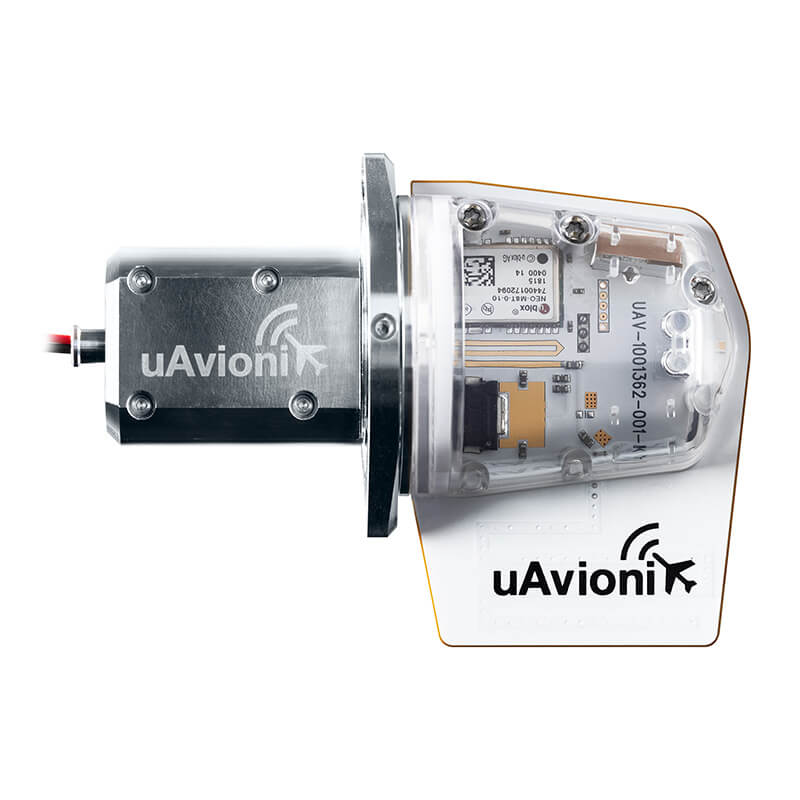

uAvionix tailBeacon is the latest all-in-one certified ADS-B solution from uAvionix.

Remove your standard rear position light and replace with skyBeacon for ADS-B compliance.

tailBeacon is a 2020 compliant, near zeroinstall, Class B1S ADS-B UAT transmitter and WAAS GPS integrated into a rear position light. The power transcoder decodes replies from legacy Mode C and Mode S transponders. 14 CFR §91.227 compliant. Smart phone configurable over WiFi.

Features

UAT Transmitter
Meets the performance requirements of TSO154c Class B1S. RTCA DO-282B Class B1S

Position Light
Meets performance requirements of TSOC30c Type III

WAAS GPS
Integrated RAIM processor for Security and Integrity protection
SBAS corrections and health messages used to detect and correct satellite range errors
Satellite pseudo range step errors detectedand excluded
SBAS fast and long-term corrections applied

Power Transcoder
Decodes altitude and squawk via aircraft electrical system

Certification
Certified via approved model list (AML) for STC'd installation on hundreds of aircraft makes and models
Patents Pending

Regulatory
FCC ID 2AFFTUAT016R
ADS-B Out: §91.225, §91.227, AC 20-165B
GNSS Position: AC 20-165B
Position Light: SAE/AS8037

Specifications

Specification Value
Input Voltage 11-31V DC
Operating Power 3 Watts
Size 92x43x73mm
Weight 70 grams
SDA/SIL 2/3
Operating Temp -45 to 80°C


978MHz UAT Transmitter
Power Classification DO-282B Medium Power


WAAS GPS
Tracking Requisition Cold Start -166dBm
-160dBm
-148dBm


LED Position Light
Color Aviation White
Intensity 40 candelas


WiFi Configuration
Physical 802.11b/g/n
App Compatibility iOS, Android

Power Transcoder
Decodes Mode A,C and S via DC light

Easy Installation

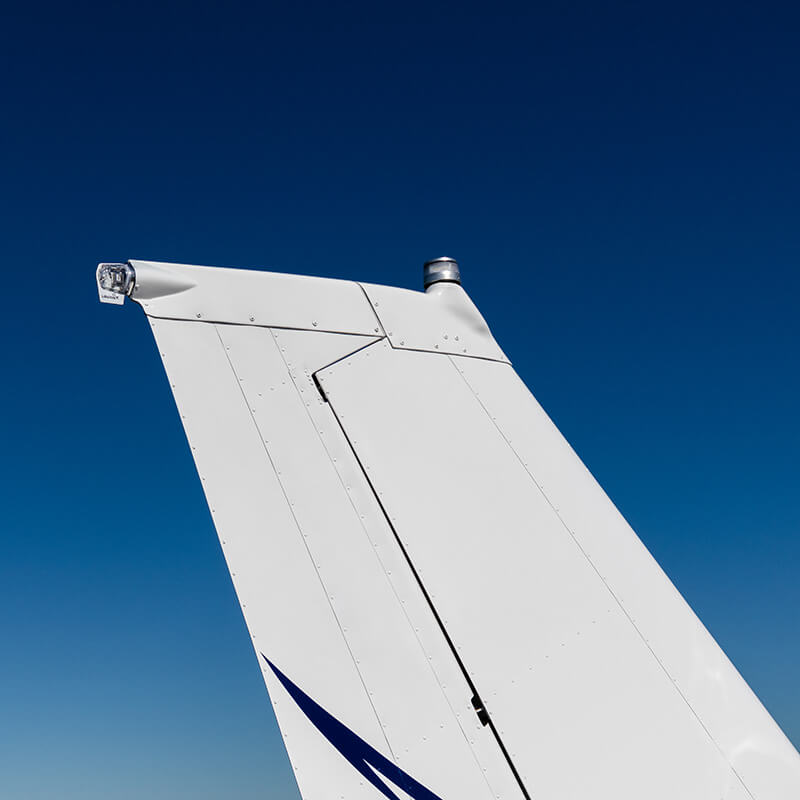

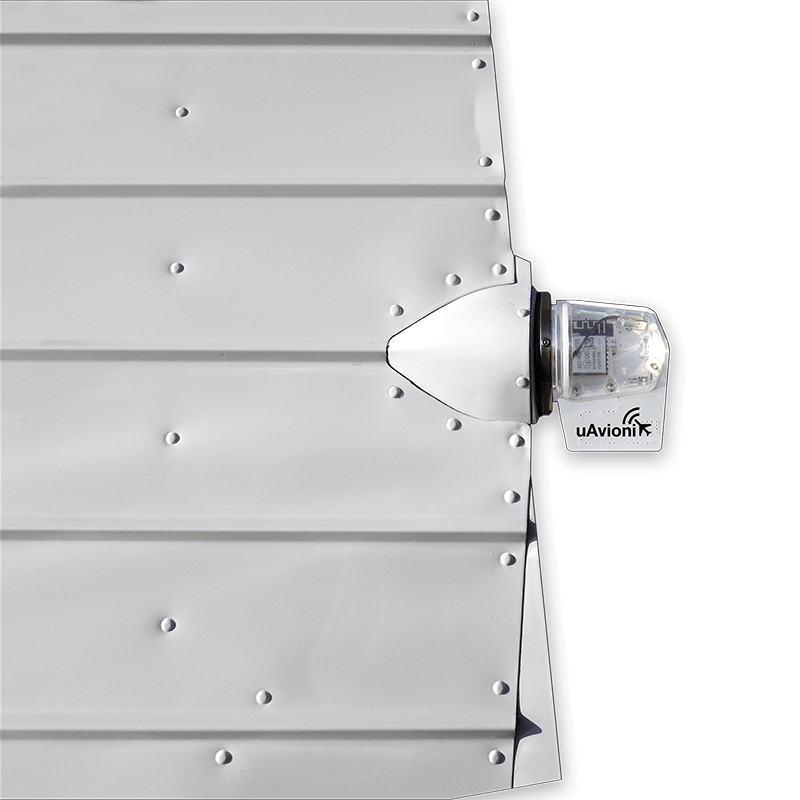

  • Installation is as simple as replacing the aft aircraft position light.
  • No airframe modifications or additional antennas are required.
  • Works with any Mode C or Mode S transponder.
  • Transponder data is provided via the existing aircraft wiring system using the Power Transcoder.
  • TailBeacon uses the existing mounting location, breaker, and wiring.

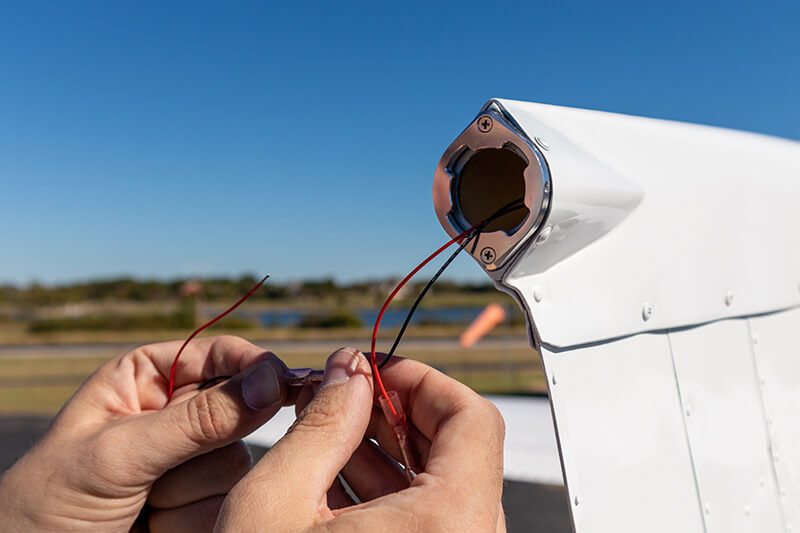

  • The installation requires 2 screws and reuses the existing power and ground to your current position light.

Goof-Proof Configuration

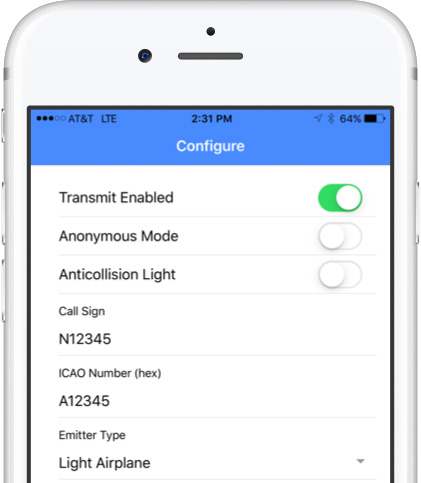

Mechanically installing an ADS-B solution is only half the battle. The skyBeacon mobile application can also be used to configure tailBeacon. The intuitive, easy to use app guides you through setting the necessary values including the ICAO address, emitter type, aircraft length, width and GPS offsets. Since tailBeacon is self-contained there are no serial ports settings or protocols to configure.

The skyBeacon mobile application is available for both Apple iOS and Android.

Reviews

This is a great product. I have installed 2, so far. It is STCd for the Cessna 172. I am a qualified installer for uavionix. If your A&P needs support from an IA who is comfortable with the product regarding installation on other models, Gmail me at a9548925559

John S
November 4, 2019

Installation (TSO version) took 30 minutes, including time needed to install Whelen type 2 pin plug on TailBeacon wire leads for a factory connection to the Position Light power plug on the Beechcraft. Setting the parameters took another 30 minutes. The ground check was done in 20 minutes, followed by a 30 minute flight check. No removing of interior side panels, floor, ceiling, or seats to route antenna or power cables. No modifications to the instrument panel. The uAvionix TailBeacon is an excellent solution to meet the Jan 1st FAA compliance requirement.

Ken I
November 1, 2019

The staff in Corona were very helpful. They back ordered this for me since my rebate was expiring soon, it showed up a few days later and they called immediately. Installation was a breeze and setup was very easy. Passed validation flight on the first attempt. Note you may have to adjust the setting to read the transponder squawk code. Test it with various configurations of power draws and engine on/off to verify its consistently reading. Im happy I waited for this to come out. Note, after you submit for your rebate youll need to email the FAA rebate help line with a photo of your invoice/sn proving you bought the TSO version.

Tamer A
October 24, 2019

One well made unit. This is a very good solution to the ADSB mandate.

Van S
October 24, 2019

We have installed two of these units in experimental aircraft and they work perfectly. Installation and setup was easy in those aircraft so we expect no difference with the certified unit. In our opinion the most resoneable solution to the ADS-B requirement.

Bruce S
October 21, 2019

Spruce folks were very helpful with this order, especially given that I was on a tight schedule to meet ADS-B rebate requirements.

Clarence B
October 18, 2019

Q&A

Q: Is this Uavionix Tailbeacon 11-17246 STC approved?

Yes, the tailBeacon has an STC for the Cessna 172. The high-wing installation satisfies the FAA requirements and enables subsequent tailBeacon installations to be performed on any “suitable aircraft” without STC as a minor alteration. A suitable aircraft supports the installation of the tailBeacon without airframe modification.

Q: Can you replace the tail light in the Uavionix Tailbeacon if it burns out?

Per the manufacturer, this is an LED light rated for 10,000 hours of flight, but if something were to happen, please go to manufacturer for replacement or repair.

Q: Does this unit/app allow the pilot to input an alternate callsign such as for Angel Flight or Compassion flights?

The CALL SIGN can be up to an 8 digit code that corresponds to the tail number of the aircraft.

Q: Does this unit have anonymous mode capability?

Yes, this unit has an option for anonymous mode.

Q: Will the UAvionix Tailbeacon work with the AvMap EXP V GPS?

This is not designed to integrate with a GPS. This provides ADS-B Out only and will not provide ADS-B In traffic display.

Q: Will this Uavionix Tailbeacon work with mode-s transponders?

Yes, the Uavionix Tailbeacon is designed to work with both Mode C and Mode S transponders.

Q: Will this Uavionix Tailbeacon work on a PA28 R200?

This is approved for use in production aircraft. We do not have an aircraft eligibility list. Please contact your A&P to discuss the legality of installation in your aircraft.

Q: Is this Uavionix Tailbeacon safe for aircraft parked outside? Protected against bad weather?

Yes, this is designed to be mounted to the outside of the aircraft. It has weather protection.

Q: Does this item come with an LOA from the manufacturer for installation under STC?

Per Uavionix: all documentation is available on the the Uavionix website.

Q: Does the UAvionix Tailbeacon ADS-B Out System include ADS-B In capability?

No, this unit is for ADS-B out only.
