Powersonic PS-12260Nb Battery

$108.75/Each
Quantity
Add to Wishlist
Part# 11-03155
MFR Model# PS-12260NB

Overview

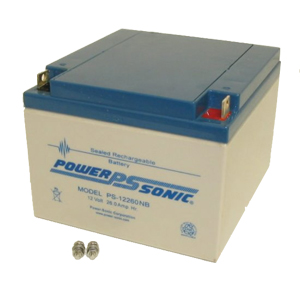

Powersonic PS-12260NB - 12 Volt/26 Amp Hour Sealed Lead Acid Battery with Nut-Bolt Connector.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Sealed/Maintenance-Free - The valve regulated, spill-proof construction allows troublefree, safe operation in any position. There is no need to add electrolyte, as gases generated during overcharge are recombined in a unique "oxygen cycle."
  • Valve Regulated Design - Our batteries incorporate a series of one-way low pressure valves. These self sealing valves allow the venting of any excess gasses that may be produced in the battery due to severe overcharging.
  • Design Flexibility - Batteries may be used in series and/or parallel to obtain choice of voltage and capacity. Due to recent design breakthroughs, the same battery may be used in either cyclic or standby applications.
  • Rugged Construction - The high impact resistant battery case is made of nonconductive ABS plastic to UL94-HB. This material imparts very good resistance to shock, vibration, chemicals and heat. Certain models feature flame retardant (FR) cases.
  • Wide Operating Temperature Range - Power-Sonic batteries may be discharged over a temperature range of -40C to +60C (-40F to +140F) and charged at temperatures ranging from -40C to +50C (-40F to +122F)
  • Long Service Life - Under normal operating conditions, four or five years of dependable service life can be expected in stand-by applications, or between 200 and 1000 charge/ discharge cycles depending on the average depth of discharge.
  • Deep Discharge Recovery - Special separators, advanced plate composition, and a carefully balanced electrolyte system have greatly improved the ability to recover from excessively deep discharge.
  • Lead Calcium Plates - Heavy duty lead calcium plates provide an extra margin of performance and life in both cyclic and float applications and give unequaled recovery from deep discharge.
  • Operation in any Orientation - Our SLA batteries can be discharged in any orientation, without reduction in performance or leakage of electrolyte.
  • Long Shelf Life - A low self discharge rate allows storage of fully charged batteries for extended periods of time before charging is required. Lower storage temperatures further enhance shelf life characteristics.

Specifications

  • Model: Powersonic PS-12260NB
  • PPS SKU: 35L107S1
  • Shipping Weight: 18 lbs
  • Availability: Stock / 24 Hours
  • Manufactured by: Powersonic
  • Dimensions: 6.56"L x 6.97"W x 4.92"H
  • Voltage: 12 Volts
  • Capacity: 26 Amp Hour(s)
  • Chemistry: Lead
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can this Powersonics PS-12260NB battery be used in certified aircraft?

No, this battery is intended for use in experimental aircraft only.
