Compass Repair With Fluid

$13.50/Each
Part# 10-08000

Overview

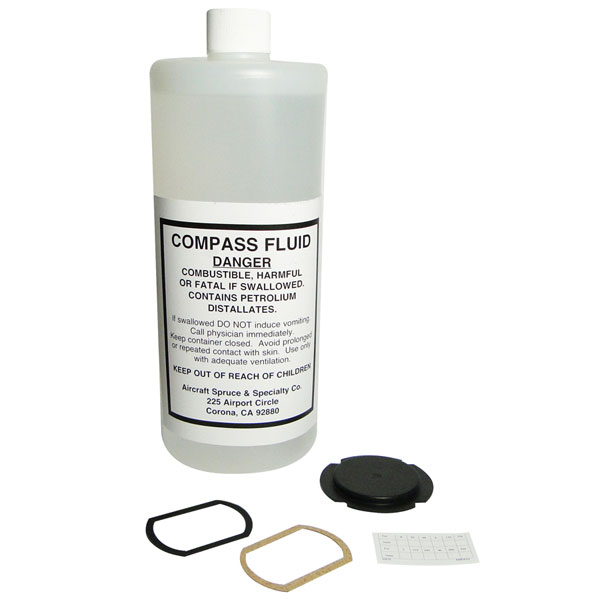

Airpath compass repair kits. Includes (2) Gaskets, (1) Deviation Card, (1) Diaphram. With or without 1/2 pint of Compass Fluid.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application

  • C-2200 Series
  • C-2300 Series
  • C-2350 Series
  • C-2400 Series
  • C-2450 Series
  • C-2475 Series

Reviews

Easy repair for my previously 1/2 full compass. In my case the old gaskets came off easily. The instructions say to fill from the back (diaphragm side) submerging the compass body in fluid. Unless you have a perfectly sized, preferably square tank in which to submerge the compass (or make one), the kit will not have enough fluid for this method. Following a prior suggestion, I filled the unit from the front, setting the glass gently on top of the gasket and fluid in the filled body. Then gently screwed it together. This worked perfectly with no bubbles, and I had plenty of fluid from the kit due to virtually no waste this way. The instructions warn to install the glass in the same way as removed due to a bevel . There is a top and bottom for sure, but I could not find a bevel (suspect a red herring on that). However, I kept track of inside/outside and reassembled as it was with no issues. Nice to have a full compass again!

Ted L
May 17, 2025

Worked perfectly and reasonably priced.

Northwest A Verified Purchase

Compass Repair With Fluid

May 16, 2025

Does the job nicely. In my case only the rear diaphragm was leaking, I should have left the front face untouched as that was quite difficult to safely remove.

Peter M Verified Purchase

Compass Repair With Fluid

April 8, 2025

Super fast shipment and very well packaged. Thank you!

Robert K Verified Purchase

Compass Repair With Fluid

April 2, 2025

Kit worked fine.

Dwight B Verified Purchase

Compass Repair With Fluid

February 20, 2025

Works well, easy to repair.

John C Verified Purchase

Compass Repair With Fluid

February 18, 2025

I have fixed two compasses now. Follow instructions. Key is to submerge compass and rotate on its side to remove bubble. I needed two more pints of fluid to fill my bowl to do this. In the end, it worked great.

Keat P Verified Purchase

Compass Repair With Fluid

November 25, 2024

Easy to repair the compass

Kurt R Verified Purchase

Compass Repair With Fluid

July 2, 2024

Worked as described.

Linda M Verified Purchase

Compass Repair With Fluid

April 21, 2024

Works well. Hardest part was screwing it back together with out bubbles in it. Other wise vary simple

Mike N Verified Purchase

Compass Repair With Fluid

January 23, 2024

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the repair kit come with both gaskets for the glass?

Yes, both gaskets are included.

Q: Does the Airpath Compass Repair kit come with instructions on how to use it?

No, it does not come with instructions.

Q: Does this kit also fit the military model CB-2100-T4 Airpath compass?

This is a generic repair kit and should work with the Airpath compass you mention.

Q: Do you have the threaded male electric connector that connects to the back of the compass?

No, it would be a special order from the manufacturer. Please contact our sales team for price and lead time on this one.

Q: Will this kit fit an old Airpath B-16 compass?

If the B-16 exceeds 2-1/4 inches in size or it is a bubble lense this will not work.

Q: is this a repair kit for c2350-l4-m23-24?

Yes this kit should work with that compass.
