SHOCK CORD RING - 9044

$28.50/Each
Quantity
Add to Wishlist
Part# 9044
MFR Model# 9044

Overview

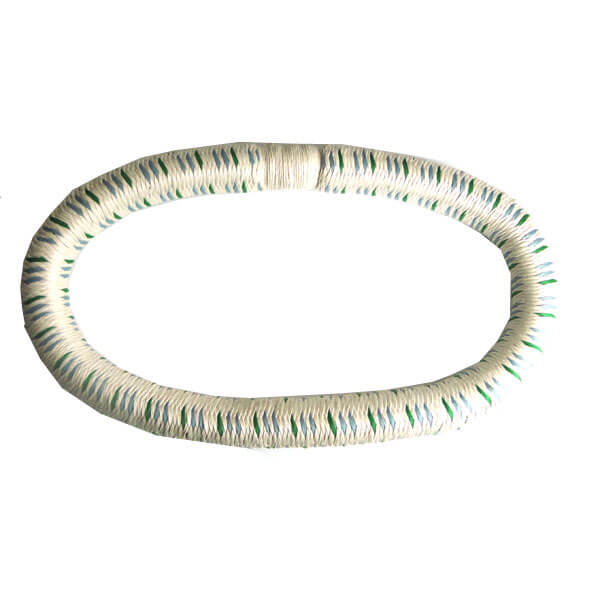

An endless elastic ring composed of multiple strands of natural rubber, wound into a circular skein. Braided cover is high grade yarn. Manufactured to meet specification MIL-C-5651B, Type II. Shock cord is used in landing gear to reduce shock transmitted to fuselage while landing and taxiing and on other shock mounting applications. Color coded to insure fresh stock.

CW (Cold Weather)shock rings available on Special Order basis. Prices are approx. twice that of standard shock rings. Add "-CW" to standard part number when ordering.

The MIL Fresh Shock Ring number is 9044. The ring size is 9/16" x 4-1/2". Test is 400 LBS. 4 units required.

Note: Size listed is cord diameter x ID

Application Chart

Plane Type Part # Size Test Lbs No. Req'd
Aero Commander 500A;
680
9044 9/16" x 4-1/2" 400 8
Aero Commander 500A;
500B;
560F
9044 9/16" x 4-1/2" 400 4
Aero Commander 680F 9044 9/16" x 4-1/2" 400 2
