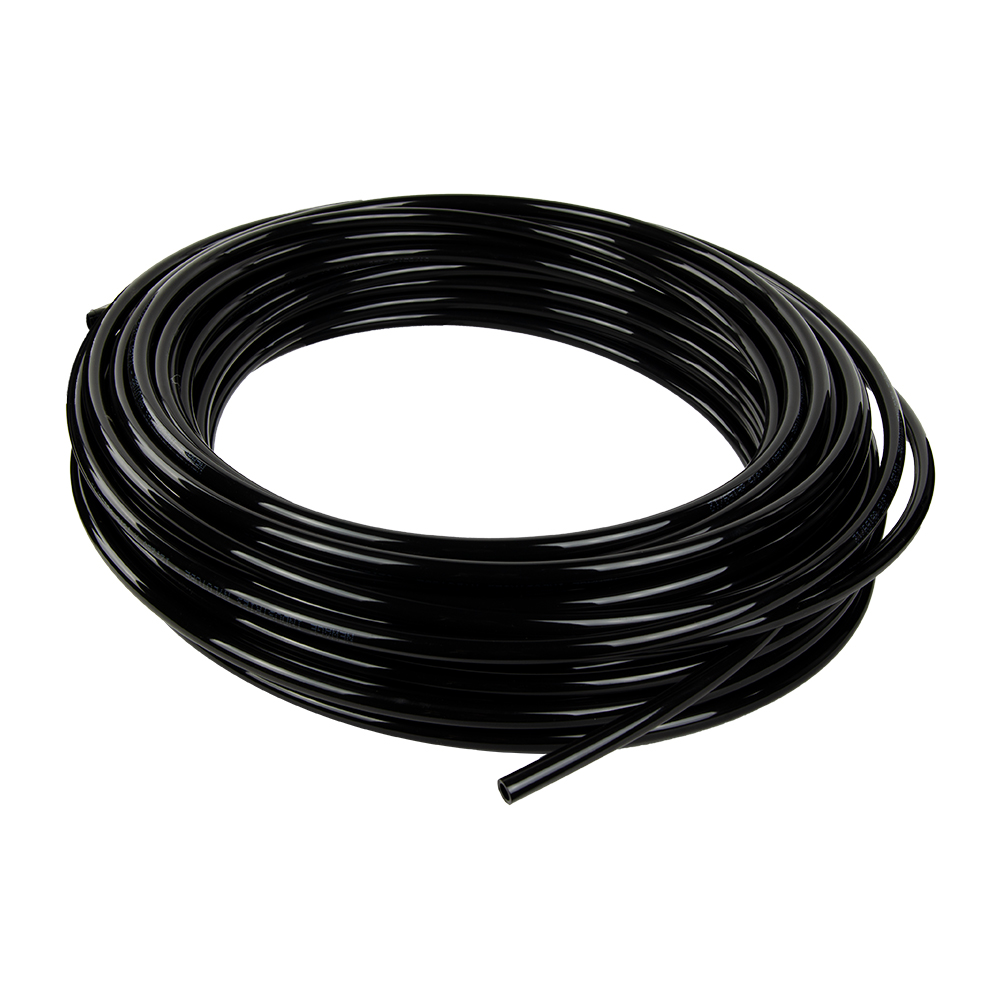

Nylon Tubing 66Nsr-Bk 3/8 Black

$2.70/Foot
Part# 05-01231
MFR Model# 66NSR-BK 3/8
TypePart NumberO.D.
(In.)
Wall (In.)Burst
Pressure
(PSI)
Min.
Bend
Radius
Wt.
(Lb./Ft.)
NSR Tubing - Black05-012313/80.07521201.004

Overview

Nylo-Seal type "N":
Semi-rigid natural color (N) tubing is made of Nylon-II and is far superior to other types of Nylon tubing. It does not depend on moisture for flexibility and does not become brittle. It has excellent resistance to flexural fatigue and can be used where there is vibration or tube movement. Self-extinguishing under A.S.T.M. Test D635-44.

N Tubing is rated to 1000 lbs. and is excellent for instrument lines and other low pressure applications.



Nylo-Seal type "NSR":
Semi-rigid black (B) color or Natural (N) tubing is made of Nylon-II and is far superior to other types of Nylon tubing. It does not depend on moisture for flexibility and does not become brittle. It has excellent resistance to flexural fatigue and can be used where there is vibration or tube movement.

NSR Tubing is rated to 2500 P.S.I. and is excellent hydraulic brake lines after verifying it is appropriate tubing for your application.

Note: Brass Poly Flo fittings cannot be used with NSR tubing listed. Use SAE fittings, see Accessories tab.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

works great for protecting items from your safety wire. Takes a double wrap of .041 wire and protects carb bowls, oil filters, gascolators etc. Gives nice professional look to safety wire jobs.

Goodfriend A
April 7, 2021

good quailty

Richard W
March 3, 2021

Product was as ordered and of good quality.

Bob S
July 4, 2020

Got exactly what I needed quickly and at a decent price

Cody G
May 18, 2020

Tubing is semi-clear white, not black as picture shows, but it is nice and flexible. Worked wonderfully for installing a hard-line oil pressure gauge.

Vernon R
April 10, 2020

arrived on time, just what was needed

Jonathan G
January 17, 2020

This tubing is exactly what I needed and the fact that I could buy it by the foot is awesome. Great product.

Terri P
January 25, 2019

I am ordering this tubing for brakelines on an EXPERIMENTAL .... I have used it before. Easy to put together and performs as published !

Phil
March 29, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is nylo-seal tubing and fittings approved for brake lines on a certified aircraft?

These units do not have any FAA/PMA. Experimental aircraft only.

Q: What's the maximum temperature rating for this tubing (NSR Black 05-01228)?

Per the supplier: The working temperature is: -60 degrees to 200 degrees.

Q: Is the temperature rating in Celsius or Fahrenheit?

Fahrenheit.

Q: Is Nylo-seal tubing rated for fuel?

Per the Nylo-seal catalog, it can be used with hydrocarbon fuels.
