Beacon Light Constant & Fast White Strobe 5W 503Lm

$38.85/Each
Quantity
Add to Wishlist
Part# 11-12193
MFR Model# BA15SWCS-5W-1940

Overview

Note: For Experimental aircraft use only. Not FAA/PMA Approved.

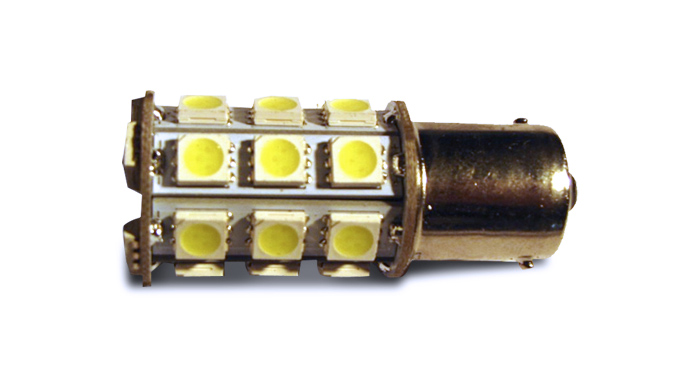

NavStrobe Aircraft Beacon Light with Constant & Fast White Strobe 5W 503 LM LED's

Emitter Type: SMD 5050
  • Total Emitters: 27
  • Power: 5W
  • Color BIN: White
Rated Voltage: 8-30VDC
  • Draws 186ma @ 14.2VDC
  • Luminous Flux: 503LM (0 degrees), 263LM (90 degrees)
  • Color Temperature: 6000~6500K
  • 2 modes: constant & fast strobe
  • Base Type: BA15s = Single contact with inline pins. (GE1940 & 1156)
  • Application: Beacon Light replacement.
  • Contains 1 light bulb per pack
Dimensions: 1.9 in x 0.7 in (49.0 mm x 1.8 cm)
Weight: 0.32 oz (9 g)

Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc.

Application Info:
    Will replace the following commonly installed bulbs: A7079B-12, A7079B-24, or any BA15S base lamp. See "Dimensional Drawing" tab to confirm dimensions will work with currently installed bulb on your aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Dimensional Drawing

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

I like it! Very bright with one-tenth the amperage draw.

Michael M
November 8, 2019

I installed these on one of our airplanes and they worked perfectly. They are really bright and when you toggle the light switch twice you strobe like a super bright Christmas tree. I just ordered nine more for our other planes.

Walter C
March 7, 2014

My old pulsating beacon was causing heat in the circuit due to high amperage. This bulb solved that problem. It has functioned reliably in constant and strobe modes for several months and I have not experienced any of the radio interference problems some have mentioned. Two nit picks. First it is not quite as bright as I would like, but acceptable. Second, it flashes about twice as many times between pauses as it should, in my opinion.

Bill
July 1, 2018

I hate to be a bearer of bad news, but I had high hopes for this bulb. My old fashioned rotating beacon is an ampere-hog, so I thought this would be a great replacement. First, I wasn't able to get it to flash once mounted on the vertical fin (though the flash function works fine on the bench.) Second. it makes my Comm radio so noisy on the lower end of the Comm band that squelch can't override it. Sadly I had to remove the bulb and go back to incandescent and spinning reflector Whelen.

Sam
September 8, 2015

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this beacon light have two contacts on bottom? Regarding Part # 11-12193

No, this bulb has one contact on the bottom.

Q: I would like to use this on my experimental airplane. Does it require a capacitor or transformer or can I just set it up with a light socket and 14 volt wire?

These units are LED replacement bulbs, with a flash option. They do not require a power supply. Only aircraft power is required.

Q: Does this beacon LED flash when turned on or do I have to flip the switch to turn the flashing on? A beacon flashes, no need for a steady light.

You would have to flip the switch on-off-on to activate the flash.
