A-970 Vernier Control

Select Knob Color:
BlackRedBlue
Select Length:
3-Foot4-Foot5-Foot6-Foot7-Foot8-Foot
Quantity
Add to Wishlist

Overview

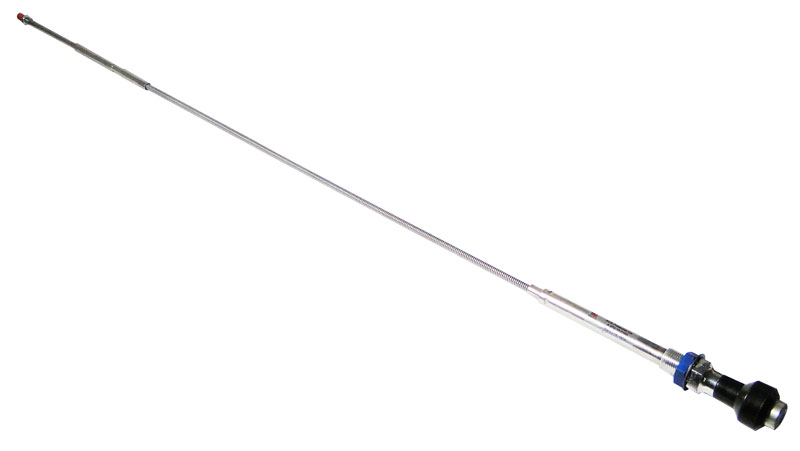

The A-970 vernier control is similar to the Model A-750 but with 1/4-28 threaded end (non-swiveling). Casing has Teflon™ inner liner for low friction and heat resistance in high-temperature areas such as engine compartments.

Furnished with FAA-style knobs (Black, Red & Blue). Travel: 3-3/8". Stocked in following lengths (measurement taken from under panel nut to end of threaded shaft with knob pushed in).

Made in USA
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How do I order a custom length A-970 cable?

All custom length cables are special order. Please call into sales at 1-877-477-7823 or use the "Contact Us" link at the top right of every page. Request a special order A-970 cable and advise the length required. Be aware that special orders are non returnable/non cancellable.

Q: What is the cable housing diameter on the A-970 control?

It is 0.250".

Q: Regarding A-970 controls: Distance from the reduced diameter part of housing where the housing is gripped by the clamp to the 1/4-20 threaded tip at idle position. Thanks

With knob pulled all the way out 5-1/4. With knob pushed in 8-1/2.
