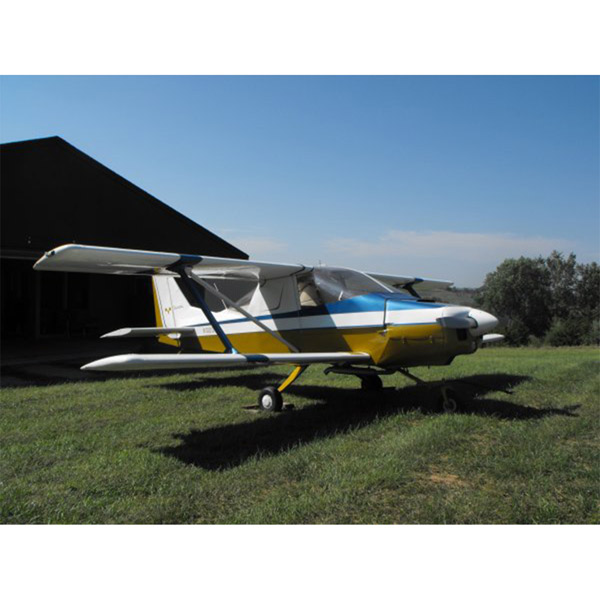

DURAND MARK V
 |
| Description | Part Number | Price | Buy | Sub-Total |
| DURAND MARK V TAIL SURFACES HARDWARE KIT GROUP 1 | 01-01623 | $68.78 | ||
| DURAND MARK V WINGS HARDWARE KIT GROUP 2 | 01-01624 | $181.84 | ||
| DURAND MARK V CONTROL SYSTEMS MATERIALS KIT GROUP 3 | 01-01625 | $1069.18 | ||
| DURAND MARK V FUSELAGE TAIL CONE & INT. SECT GROUP 4-A | 01-01626 | $44.62 | ||
| DURAND MARK V BASIC FORWARD FUSELAGE STRUCTURE GROUP 4-B | 01-01627 | $270.85 | ||
| DURAND MARK V NGN-STRUCTURAL FUSELAGE PARTS GROUP 4-C | 01-01628 | $17.10 | ||
| DURAND MARK V LANDING GEAR GROUP 5 | 01-01630 | $2945.66 | ||
| DURAND MARK V FINAL ASSEMBLY GROUP 6 | 01-01631 | $64.40 | ||
Current Total
|
||||
Click Add to Cart to add them to your shopping cart
or Add to Wishlist to store them for ordering later.
or Add to Wishlist to store them for ordering later.
| The Durand Mk V was a two-seat sports biplane aircraft developed in the United States in the 1970s and marketed for home building. The design was distinctive due to a large negative stagger on the wings, but was otherwise conventional. The single-bay wings were braced with I-struts, and while both upper and lower wings were equipped with full-span flaps, lateral control was by spoilers on the lower wing rather than ailerons. Flight testing revealed that the aircraft was impossible to stall. The pilot and single passenger sat side by side beneath an expansive canopy, and the undercarriage was of fixed, tricycle type. |
- Crew: One pilot
- Capacity: 1 passenger
- Length: 6.17 m (20 ft 3 in)
- Wingspan: 7.47 m (24 ft 6 in)
- Height: 2.03 m (6 ft 8 in)
- Wing area: 13.3 m2 (144 ft2)
- Empty weight: 549 kg (1,210 lb)
- Gross weight: 834 kg (1,840 lb)
- Powerplant: 1 × Lycoming O-320, 112 kW (150 hp) each
- Cruising Speed: 217 km/h (135 mph)
- Range: 644 km (400 miles)
- Service ceiling: 4,575 m (15,000 ft)
- Rate of climb: 6.1 m/s (1,200 ft/min)
Durand Mark V Story (PDF)
Enter the quantity desired of each item in the Buy column.
Click "Add to Cart" to add the items to your shopping cart.
Click "Add to Wishlist" to store them for ordering later.
01-01623 DURAND MARK V TAIL SURFACES HARDWARE KIT GROUP 1
| Component | Quantity | Price | Buy | ||
 |
03-00050-6 PIANO HINGE 6 FT # MS20257P4 | 1 | $10.95 | More Info |
|
 |
6X3/8-B-RO-PH SHEET METAL SCREW AN530-6R6 PHILLIPS | 57 | $0.08 | More Info |
|
 |
AN3-14A BOLT UNDRILLED AN3-14A | 1 | $0.18 | More Info |
|
|
AN3-4A BOLT UNDRILLED AN3-4A | 14 | $0.11 | More Info |
|
|
AN3-5A BOLT UNDRILLED AN3-5A | 6 | $0.11 | More Info |
|
 |
AN365-1032A MS21044N3 ELASTIC STOP NUT | 9 | $0.12 | More Info |
|
 |
AN366F-1032A MS21078-3 TWO LUG ANCHOR NUT | 12 | $3.60 | More Info |
|
 |
AN426AD-3-4 SOLID ALUM RIVET MS20426AD-3-4 | 0.13 | $45.50 | More Info |
|
 |
AN931-3-5 ELASTIC GROMMET AN931-3-5 | 2 | $0.20 | More Info |
|
 |
AN960-10 WASHER, FLAT AN960-10 | 15 | $0.02 | More Info |
Enter the quantity desired of each item in the Buy column.
Click "Add to Cart" to add the items to your shopping cart.
Click "Add to Wishlist" to store them for ordering later.
01-01624 DURAND MARK V WINGS HARDWARE KIT GROUP 2
Enter the quantity desired of each item in the Buy column.
Click "Add to Cart" to add the items to your shopping cart.
Click "Add to Wishlist" to store them for ordering later.
01-01625 DURAND MARK V CONTROL SYSTEMS MATERIALS KIT GROUP 3
Enter the quantity desired of each item in the Buy column.
Click "Add to Cart" to add the items to your shopping cart.
Click "Add to Wishlist" to store them for ordering later.
01-01626 DURAND MARK V FUSELAGE TAIL CONE & INT. SECT GROUP 4-A
Enter the quantity desired of each item in the Buy column.
Click "Add to Cart" to add the items to your shopping cart.
Click "Add to Wishlist" to store them for ordering later.
01-01627 DURAND MARK V BASIC FORWARD FUSELAGE STRUCTURE GROUP 4-B
Enter the quantity desired of each item in the Buy column.
Click "Add to Cart" to add the items to your shopping cart.
Click "Add to Wishlist" to store them for ordering later.
01-01628 DURAND MARK V NGN-STRUCTURAL FUSELAGE PARTS GROUP 4-C
Enter the quantity desired of each item in the Buy column.
Click "Add to Cart" to add the items to your shopping cart.
Click "Add to Wishlist" to store them for ordering later.
01-01630 DURAND MARK V LANDING GEAR GROUP 5
Enter the quantity desired of each item in the Buy column.
Click "Add to Cart" to add the items to your shopping cart.
Click "Add to Wishlist" to store them for ordering later.
01-01631 DURAND MARK V FINAL ASSEMBLY GROUP 6
| Component | Quantity | Price | Buy | ||
|
6X3/8-B-RO-PH SHEET METAL SCREW AN530-6R6 PHILLIPS | 150 | $0.08 | More Info |
|
 |
AN310-4 NUT, CASTLE AN310-4 | 4 | $0.94 | More Info |
|
|
AN310-5 NUT, CASTLE AN310-5 | 4 | $1.05 | More Info |
|
|
AN310-6 NUT, CASTLE AN310-6 | 2 | $1.39 | More Info |
|
 |
AN4-11 BOLT DRILLED AN4-11 | 4 | $0.78 | More Info |
|
 |
AN5-24 BOLT DRILLED AN5-24 | 2 | $1.39 | More Info |
|
|
AN5-7 BOLT DRILLED AN5-7 | 2 | $0.93 | More Info |
|
 |
AN6-10A BOLT UNDRILLED AN6-10A | 4 | $0.56 | More Info |
|
|
AN6-13A BOLT UNDRILLED AN6-13A | 4 | $0.61 | More Info |
|
|
AN6-16A BOLT UNDRILLED AN6-16A | 4 | $0.73 | More Info |
|
|
AN6-21 BOLT DRILLED AN6-21 | 2 | $1.20 | More Info |
|
|
AN6-21A BOLT UNDRILLED AN6-21A | 2 | $0.84 | More Info |
|
|
AN6-22A BOLT UNDRILLED AN6-22A | 2 | $0.99 | More Info |
|
 |
AN960-416 WASHER, FLAT AN960-416 | 100 | $0.04 | More Info |
|
 |
AN960-516 WASHER, FLAT AN960-516 | 100 | $0.04 | More Info |
|
|
AN960-616 WASHER, FLAT AN960-616 | 200 | $0.04 | More Info |
|
 |
MS24665-132 COTTER PIN AN380-2-2 | 8 | $0.03 | More Info |
|
 |
MS24665-283 COTTER PIN AN380-3-3 | 100 | $0.04 | More Info |
- Spruce Phone Numbers
- Toll Free: 1-877-477-7823
- Customer Service:
1-800-861-3192 - Fax: 1-951-372-0555
- Locations and Hours
- West - Corona, CA
- East - Peachtree City, GA
- Alaska - Wasilla, AK
- Canada - Brantford, ON
- International Reps
- Help
- Contact Us
- Help Center
- Forgot My Password
- Online Bill Pay
- Payment Information
- Privacy Policy
- Return Policy
- Shipping & Delivery
- Special Order Request
- Terms & Conditions
- Track / Request a Return
- Wishlist
- Company Info
- About Us
- BT-13 Restoration
- Customer Testimonials
- Mission Statement
- Poberezny Estate
- President's Message
- Quality Control
- Sitemap
- Social Networks
- Sponsorships
- Career Opportunities
- Spruce Staff
Copyright © 1995 -
2019 Aircraft Spruce and Specialty Co. All rights reserved. Prices shown are in USD.
Please view our Privacy Policy by clicking here for details on data collection and terms of use.
Prices, features, and specifications are subject to change without notice.
Images are for reference only and actual product appearance may vary.
Please view our Privacy Policy by clicking here for details on data collection and terms of use.
Prices, features, and specifications are subject to change without notice.
Images are for reference only and actual product appearance may vary.
Newsletters
